Building a Jakarta Server Faces application

I have created a Jakarta EE 8 starter to help you to start a simple Jakarta EE 8 application in seconds. In this post, I will reuse the codebase of Jakarta EE starter, and create a simple Kanban board like web application with JSF , EJB, CDI, JPA. etc.

Image for post
Image for post

I assume you have read my former posts for Jakarta EE 8 starter.

In this post, we use a real database database to store data instead of dummy codes in Jakarta EE 8 starter , JPA is used to persist data, EJB is responsible for handling transaction, and JSF is selected to present the Web UI pages.

Firstly let’s setup Jakarta Persistence.

Setup Jakarta Persistence

Create a /src/main/resources/META-INF/persistence.xml configuration.

<?xml version="1.0" encoding="UTF-8"?>
<persistence version="2.2"
xmlns="http://xmlns.jcp.org/xml/ns/persistence"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/persistence http://xmlns.jcp.org/xml/ns/persistence/persistence_2_2.xsd">
<persistence-unit name="defaultPU" transaction-type="JTA">
<jta-data-source>java:comp/DefaultDataSource</jta-data-source>
<exclude-unlisted-classes>false</exclude-unlisted-classes>
<properties>
<property name="javax.persistence.schema-generation.database.action" value="drop-and-create"/>
</properties>
</persistence-unit>
</persistence>

Since Java EE 7, a default DataSource should be available at runtime in application servers, this improves the portability of your application source codes between different servers.

This application only includes a simple Task domain object. Create a simple JPA @Entity to present the task entity persisted in the database.

@Entity
public class Task implements Serializable {
private static final long serialVersionUID = 1L; public static enum Status {
TODO, DOING, DONE;
}
public Task() {
}
public static Task of(String name, String description) {
final Task task = new Task();
task.setName(name);
task.setDescription(description);
return task;
}

@Id
@GeneratedValue(strategy = GenerationType.AUTO)
private Long id;
@Column(name = "name")
private String name;
@Column(name = "description")
private String description;
@Enumerated(EnumType.STRING)
@Column(name = "status")
private Status status = TODO;
@Column(name = "created_date")
private LocalDateTime createdDate;
@Column(name = "last_modified_date")
private LocalDateTime lastModifiedDate;
...
}

In the above code,

Next, we will use EJB @Stateless bean to perform CRUD operations.

Create a TaskRepository bean

Create a class named TaskRepository and annotated it with @Stateless like following.

@Stateless
public class TaskRepository {
@PersistenceContext
EntityManager em;
public Task findById(Long id) {
Task task = em.find(Task.class, id);
if (task == null) {
throw new TaskNotFoundException(id);
}
return task;
}
public Optional<Task> findOptionalById(Long id) {
Task task = em.find(Task.class, id);
return Optional.ofNullable(task);
}
public List<Task> findByStatus(Task.Status status) {
CriteriaBuilder cb = this.em.getCriteriaBuilder();
CriteriaQuery<Task> q = cb.createQuery(Task.class);
Root<Task> c = q.from(Task.class);

if (null != status) {
q.where(cb.equal(c.get(Task_.status), status));
}
TypedQuery<Task> query = em.createQuery(q); return query.getResultList();
}
public Task save(Task task) {
em.persist(task);
return task;
}
public Task update(Task task) {
return em.merge(task);
}
public void delete(Task task) {
task = em.merge(task);
em.remove(task);
}
public void deleteById(Long id) {
Task task = this.findById(id);
em.remove(task);
}
}

In the above codes,

The entity metadata classes generation is dependent on the background Persistence provider, Hibernate and EclipseLinks provide APT tooling to generate them at compile time.

Add the following dependency in pom.xml.

<dependency>
<groupId>org.eclipse.persistence</groupId>
<artifactId>org.eclipse.persistence.jpa.modelgen.processor</artifactId>
<version>${eclipselink.version}</version>
<scope>provided</scope>
</dependency>

When compiling the source codes by Maven command line, it will be picked up by maven-compiler-plugin and generate the metadata classes for you.

For most of IDEs, such as Eclipse and IDEA, you should enable APT manually in the settings of IDEs. Then it will generate the entity metadata classes automatically.

Initializing Sample Data

EJB provides a Singlton bean which can be used for initializing sample data as expected.

@Startup
@Singleton
public class Bootstrap {
@Inject
Logger LOG;
@Inject
TaskRepository taskRepository;
@PostConstruct
public void init() {
LOG.log(Level.INFO, "bootstraping application...");
Stream.of("first", "second")
.map(s -> {
Task task = new Task();
task.setName("My " + s + " task");
task.setDescription("The description of my " + s + " task");
task.setStatus(Task.Status.TODO);
return task;
})
.map(data -> taskRepository.save(data))
.collect(Collectors.toList())
.forEach(task -> LOG.log(Level.INFO, " task saved: {0}", new Object[]{task}));
}
}

The above Bootstrap bean is marked as @Startup, which means this bean will be initialized as soon as possible when EJB container is ready. And @Startup must be used with EJB @Singletone.

Next, let’s move to the UI work. Firstly, let’s enable JSF 2.3 in your Jakarta EE 8 applications.

Enabling JSF 2.3

Unlike former JSF, JSF 2.3 brought a new FacesConfiguration annotation to enable the features in JSF 2.3.

Create a class annotated with @FacesConfig, set attribute version to JSF_2_3.

@FacesConfig(
// Activates CDI build-in beans
version = JSF_2_3
)
public class FacesConfigurationBean {
}

In the home page of the application, it displays tasks by status groups, including TODO, DOING, DONE.

When JSF is enabled, it supports Facelets template engine to render Web UI.

Facelets layout and templates

For common use cases, we splits a page into several parts, such as header, content, footer etc.

In the src/main/webapp/WEB-INF/views, create a template.xhtml.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:ui="http://xmlns.jcp.org/jsf/facelets"
xmlns:f="http://xmlns.jcp.org/jsf/core"
xmlns:h="http://xmlns.jcp.org/jsf/html">
<f:view contentType="text/html" encoding="UTF-8">
<ui:insert name="metadata"></ui:insert>
<h:head>
<title>Taskboard - A JakartaEE Faces Sample</title>
<!-- Required meta tags -->
<meta charset="utf-8"></meta>
<meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no"></meta>
<!-- styles -->
<link rel="stylesheet"
href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"
integrity="sha384-Vkoo8x4CGsO3+Hhxv8T/Q5PaXtkKtu6ug5TOeNV6gBiFeWPGFN9MuhOf23Q9Ifjh"
crossorigin="anonymous"/>
<link href="https://stackpath.bootstrapcdn.com/font-awesome/4.7.0/css/font-awesome.min.css"
rel="stylesheet"
integrity="sha384-wvfXpqpZZVQGK6TAh5PVlGOfQNHSoD2xbE+QkPxCAFlNEevoEH3Sl0sibVcOQVnN"
crossorigin="anonymous"/>
<link href="#{request.contextPath}/resources/css/main.css" rel="stylesheet"/>
<!-- <h:outputStylesheet library="css" name="main.css"></h:outputStylesheet>-->
<ui:insert name="headIncludes"></ui:insert>
</h:head>
<h:body styleClass="d-flex flex-column h-100">
<h:panelGroup layout="block" styleClass="header">
<ui:include src="/WEB-INF/layout/header.xhtml"/>
</h:panelGroup>
<main role="main" class="flex-shrink-0">
<div class="container">
<ui:include src="/WEB-INF/layout/alert.xhtml"/>
<h:panelGroup layout="block" styleClass="page-header">
<h1>
<ui:insert name="pageTitle"></ui:insert>
</h1>
</h:panelGroup>
<ui:insert name="content"/>
</div>
</main>
<ui:include src="/WEB-INF/layout/footer.xhtml"/>
<!-- Optional JavaScript -->
<!-- jQuery first, then Popper.js, then Bootstrap JS -->
<script src="https://code.jquery.com/jquery-3.4.1.slim.min.js" integrity="sha384-J6qa4849blE2+poT4WnyKhv5vZF5SrPo0iEjwBvKU7imGFAV0wwj1yYfoRSJoZ+n" crossorigin="anonymous">
/** stop autoclosing **/
</script>
<script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.0/dist/umd/popper.min.js" integrity="sha384-Q6E9RHvbIyZFJoft+2mJbHaEWldlvI9IOYy5n3zV9zzTtmI3UksdQRVvoxMfooAo" crossorigin="anonymous">
/** stop autoclosing **/
</script>
<script src="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/js/bootstrap.min.js" integrity="sha384-wfSDF2E50Y2D1uUdj0O3uMBJnjuUD4Ih7YwaYd1iqfktj0Uod8GCExl3Og8ifwB6" crossorigin="anonymous">
/** stop autoclosing **/
</script>
<ui:insert name="bodyIncludes"></ui:insert>
</h:body>
</f:view>
</html>

In above codes,

Facelets follow the Composition pattern, it is easy to replace the specified content with Facelets composition view.

Check the file contents of header.xhtml, footer.xhtml and alert.xhtml yourself from the source codes.

Displaying Tasks

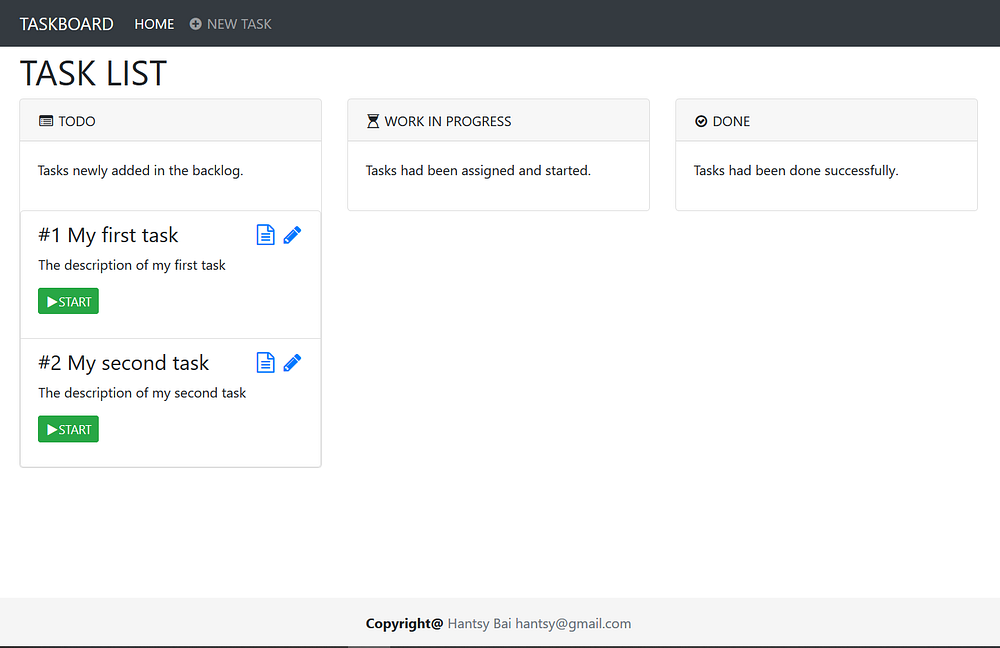

Let’s have a look at the home page which displays the tasks in different status swimming lanes.

<ui:composition xmlns="http://www.w3.org/1999/xhtml"
xmlns:ui="http://xmlns.jcp.org/jsf/facelets"
xmlns:f="http://xmlns.jcp.org/jsf/core"
xmlns:h="http://xmlns.jcp.org/jsf/html"
xmlns:c="http://java.sun.com/jsp/jstl/core"
template="/WEB-INF/layout/template.xhtml">
<ui:define name="metadata">
<f:metadata>
<f:viewAction action="#{taskHome.init()}" />
</f:metadata>
</ui:define>
<ui:define name="pageTitle"> TASK LIST</ui:define>
<ui:define name="content">
<h:form>
<div class="row">
<div class="col-md-4 col-xs-12">
<div class="card" >
<!-- Default panel contents -->
<div class="card-header">
<span class="fa fa-list-alt" aria-hidden="true"></span>
TODO
</div>
<div class="card-body">
<p>Tasks newly added in the backlog.</p>
</div>
<!-- List group -->
<ui:fragment rendered="#{not empty taskHome.todotasks}">
<ul id="todotasks" class="list-group">
<ui:repeat var="task" value="#{taskHome.todotasks}">
<li class="list-group-item">
<h4>
<span>##{task.id} #{task.name}</span>
<span class="pull-right">
<h:link outcome="/details.xhtml">
<f:param name="id" value="#{task.id}"></f:param>
<span class="fa fa-file-text-o" aria-hidden="true"></span>
</h:link>
<h:link outcome="/form.xhtml">
<f:param name="id" value="#{task.id}"></f:param>
<span class="fa fa-pencil" aria-hidden="true"></span>
</h:link>
</span>
</h4>
<p>#{task.description}</p>
<p>
<h:commandLink action="#{taskHome.markTaskDoing(task.id)}"
styleClass="btn btn-sm btn-success">
<span class="fa fa-play" aria-hidden="true"></span>START
</h:commandLink>
</p>
</li>
</ui:repeat>
</ul>
</ui:fragment>
</div>
</div>
<div id="doingtasks" class="col-md-4 col-xs-12">
<div class="card">
<!-- Default panel contents -->
<div class="card-header">
<span class="fa fa-hourglass-start" aria-hidden="true"></span>
WORK IN PROGRESS
</div>
<div class="card-body">
<p>Tasks had been assigned and started.</p>
</div>
<!-- List group -->
<ui:fragment rendered="#{not empty taskHome.doingtasks}">
<ul id="doingtasks" class="list-group">
<ui:repeat var="task" value="#{taskHome.doingtasks}">
<li class="list-group-item">
<h4>##{task.id} #{task.name}</h4>
<p>#{task.description}</p>
<p>
<h:commandLink action="#{taskHome.markTaskDone(task.id)}"
styleClass="btn btn-sm btn-info">
<span class="fa fa-check" aria-hidden="true"></span>
DONE
</h:commandLink>
</p>
</li>
</ui:repeat>
</ul>
</ui:fragment>
</div>
</div>
<div id="donetasks" class="col-md-4 col-xs-12">
<div class="card">
<!-- Default panel contents -->
<div class="card-header">
<span class="fa fa-check-circle-o" aria-hidden="true"></span>
DONE
</div>
<div class="card-body">
<p>Tasks had been done successfully.</p>
</div>
<!-- List group -->
<ui:fragment rendered="#{not empty taskHome.donetasks}">
<ul id="donetasks" class="list-group">
<ui:repeat var="task" value="#{taskHome.donetasks}">
<li class="list-group-item">
<h4>##{task.id} #{task.name}</h4>
<p>#{task.description}</p>
<p>
<h:commandLink action="#{taskHome.deleteTask(task.id)}"
styleClass="btn btn-sm btn-danger">
<span class="fa fa-trash" aria-hidden="true"></span> DELETE
</h:commandLink>
</p>
</li>
</ui:repeat>
</ul>
</ui:fragment>
</div>
</div>
</div>
</h:form>
</ui:define>
</ui:composition>

In the above codes,

More details about the Facelets taglibs, check the Jakarta Server Faces 2.3.2 VDL Documentation .

Baking the backend bean

To display the tasks, it requires a backend bean to serve the data for tasks.xhtml template.

Create a CDI bean.

@Named("taskHome")
@ViewScoped()
public class TaskHome implements Serializable {
//@Inject
private static final Logger LOGGER = Logger.getLogger(TaskHome.class.getName());

@Inject
FacesContext facesContext;
@Inject
private TaskRepository taskRepository;
private List<TaskDetails> todotasks = new ArrayList<>(); private List<TaskDetails> doingtasks = new ArrayList<>(); private List<TaskDetails> donetasks = new ArrayList<>(); public List<TaskDetails> getTodotasks() {
return todotasks;
}
public List<TaskDetails> getDoingtasks() {
return doingtasks;
}
public List<TaskDetails> getDonetasks() {
return donetasks;
}
public void init() {
LOGGER.log(Level.INFO, "initalizing TaskHome...");
retrieveAllTasks();
}
private void retrieveAllTasks() {
LOGGER.log(Level.INFO, "retriveing all tasks...");
this.todotasks = findTasksByStatus(Task.Status.TODO);
this.doingtasks = findTasksByStatus(Task.Status.DOING);
this.donetasks = findTasksByStatus(Task.Status.DONE);
}
private List<TaskDetails> findTasksByStatus(Task.Status status) {
List<TaskDetails> taskList = new ArrayList<>();
List<Task> tasks = taskRepository.findByStatus(status);
tasks.stream().map((task) -> {
TaskDetails details = new TaskDetails();
details.setId(task.getId());
details.setName(task.getName());
details.setDescription(task.getDescription());
details.setCreatedDate(task.getCreatedDate());
details.setLastModifiedDate(task.getLastModifiedDate());
return details;
}).forEach((details) -> {
taskList.add(details);
});
return taskList;
}
public void deleteTask(Long id) { LOGGER.log(Level.INFO, "delete task of id@{0}", id); Task task= taskRepository.findOptionalById(id)
.orElseThrow(()-> new TaskNotFoundException(id));
taskRepository.delete(task);
// retrieve all tasks
retrieveAllTasks();
FacesMessage deleteInfo = new FacesMessage(FacesMessage.SEVERITY_WARN, "Task is deleted!", "Task is deleted!");
facesContext.addMessage(null, deleteInfo);
}
public void markTaskDoing(Long id) {
LOGGER.log(Level.INFO, "changing task DONG @{0}", id);
Task task = taskRepository.findOptionalById(id)
.orElseThrow(()-> new TaskNotFoundException(id));
task.setStatus(Task.Status.DOING);
taskRepository.update(task);
// retrieve all tasks
retrieveAllTasks();
}
public void markTaskDone(Long id) {
LOGGER.log(Level.INFO, "changing task DONE @{0}", id);
Task task = taskRepository.findOptionalById(id)
.orElseThrow(()-> new TaskNotFoundException(id));
task.setStatus(Task.Status.DONE);
taskRepository.update(task);
// retrieve all tasks
retrieveAllTasks();
}
}

In the above codes,

The details of a JSF request lifecycle can be found in the Jakarta EE tutorial.

Add a task

Create a Facelets template file to render a form to add or edit a task.

<ui:composition xmlns="http://www.w3.org/1999/xhtml"
xmlns:jsf="http://xmlns.jcp.org/jsf"
xmlns:ui="http://xmlns.jcp.org/jsf/facelets"
xmlns:f="http://xmlns.jcp.org/jsf/core"
xmlns:h="http://xmlns.jcp.org/jsf/html"
xmlns:p="http://xmlns.jcp.org/jsf/passthrough"
xmlns:c="http://java.sun.com/jsp/jstl/core"
template="/WEB-INF/layout/template.xhtml">

<f:metadata>
<f:viewParam name="id" value="#{editTaskAction.taskId}">
<!-- <f:validateRequired></f:validateRequired>-->
</f:viewParam>
<f:viewAction action="#{editTaskAction.init()}" />
</f:metadata>

<ui:define name="pageTitle">
<ui:fragment rendered="#{empty editTaskAction.task.id}">ADD TASK</ui:fragment>
<ui:fragment rendered="#{not empty editTaskAction.task.id}">EDIT TASK (ID: #{editTaskAction.task.id}, STATUS: #{editTaskAction.task.status})</ui:fragment>
</ui:define>
<ui:define name="content">
<div class="row">
<div class="col-md-12">
<h:form id="form" role="form" class="form">
<div class="form-group">
<label class="text-uppercase" jsf:for="name">Task Name:</label>
<input type="text"
jsf:id="name"
class="form-control #{not empty facesContext.getMessageList('form:name')?'is-invalid':''}"
jsf:value="#{editTaskAction.task.name}"
jsf:required="true"
jsf:requiredMessage="Task name is required."
placeholder="Type task name here...">
</input>
<small class="invalid-feedback">
<h:message for="name" showDetail="false" showSummary="true" />
</small>
</div>
<div
class="form-group">
<label class="text-uppercase" jsf:for="description">Task Description:</label>
<textarea jsf:id="description"
class="form-control #{not empty facesContext.getMessageList('form:description')?'is-invalid':''}"
rows="8"
jsf:value="#{editTaskAction.task.description}"
jsf:required="true"
jsf:requiredMessage="Description is required."
placeholder="Describe the task content here..." />
<small class="invalid-feedback">
<h:message for="description" showDetail="false"
showSummary="true" />
</small>
</div>
<div class="form-group">
<h:commandButton id="submitTask" type="submit"
styleClass="btn btn-lg btn-primary"
action="#{editTaskAction.save()}" value="Save Task"></h:commandButton>
</div>
</h:form>
</div>
</div>
</ui:define>
</ui:composition>

In above codes,

The following is the backend bean.

@Named("editTaskAction")
@ViewScoped()
public class EditTaskAction implements Serializable {
/**
*
*/
private static final long serialVersionUID = 1L;
//@Inject
private static final Logger LOGGER = Logger.getLogger(EditTaskAction.class.getName());

@Inject
FacesContext facesContext;
@Inject
private TaskRepository taskRepository;
private Long taskId; private Task task; public Task getTask() {
return task;
}
public void setTaskId(Long taskId) {
this.taskId = taskId;
}
public Long getTaskId() {
return taskId;
}
public void setTask(Task task) {
this.task = task;
}
public void init() {
LOGGER.log(Level.INFO, " get task of id @{0}", taskId);
if (taskId == null) {
task = new Task();
} else {
task= taskRepository.findOptionalById(taskId)
.orElseThrow(()-> new TaskNotFoundException(taskId));
}
} public String save() {
LOGGER.log(Level.INFO, "saving task@{0}", task);
if (this.task.getId() == null) {
this.task = taskRepository.save(task);
} else {
this.task = taskRepository.update(task);
}
FacesMessage info = new FacesMessage( "Task is saved successfully!");
facesContext.addMessage(null, info);
return "/tasks.xhtml?faces-redirect=true";
}
}

There are a few projects provide mature JSF components which can speed up your development.

Some other files we did not motioned here, please check the complete codes from my Github.

Running the Application

You can simply run the application in your IDE, or from Maven command line. More details check the docs of Jakarta EE 8 starter.

There is an exception, when using Open Liberty, you have to prepare the DataSource yourself in the server.xml configuration file.

Define the Jdbc lib and a default DataSource in src/main/liberty/config/server.xml.

<!-- Derby Library Configuration -->
<library id="derbyJDBCLib">
<fileset dir="${shared.resource.dir}" includes="derby*.jar"/>
</library>
<!-- Datasource Configuration -->
<!-- remove jndiName="" to serve java:comp/DefaultDataSource for Java EE 7 or above -->
<dataSource id="DefaultDataSource">
<jdbcDriver libraryRef="derbyJDBCLib" />
<properties.derby.embedded databaseName="taskdb" createDatabase="create"/>
</dataSource>
</server>

And prepare jdbc lib related resource by maven-dependency-plugin.

<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-dependency-plugin</artifactId>
<version>${maven-dependency-plugin.version}</version>
<executions>
<execution>
<id>copy</id>
<phase>package</phase>
<goals>
<goal>copy</goal>
</goals>
</execution>
</executions>
<configuration>
<artifactItems>
<artifactItem>
<groupId>org.apache.derby</groupId>
<artifactId>derby</artifactId>
<version>${derby.version}</version>
<type>jar</type>
<overWrite>false</overWrite>
</artifactItem>
</artifactItems>
<outputDirectory>${project.build.directory}/liberty/wlp/usr/shared/resources</outputDirectory>
</configuration>
</plugin>
<!-- Enable liberty-maven-plugin -->
<plugin>
<groupId>io.openliberty.tools</groupId>
<artifactId>liberty-maven-plugin</artifactId>
<version>${liberty-maven-plugin.version}</version>
</plugin>

Execute the following command when deploying to Open Liberty.

mvn liberty:create dependency:copy liberty:start

Bonus: Testing

We have explored testing Jakarta EE 8 in a former post, it is easy to test JSF web UI via Arquillian Drone and Arquillian Graphene.

Declare the following dependencies in dependencyManagement.

<!-- Selenium bom is optional -->
<!-- Selenium BOM -->
<dependency>
<groupId>org.jboss.arquillian.selenium</groupId>
<artifactId>selenium-bom</artifactId>
<version>3.8.1</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<!-- Arquillian Drone dependencies and WebDriver/Selenium dependencies -->
<dependency>
<groupId>org.jboss.arquillian.extension</groupId>
<artifactId>arquillian-drone-bom</artifactId>
<version>${version.org.jboss.arquillian.drone}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<!-- To use Arquillian Graphene 2-->
<dependency>
<groupId>org.jboss.arquillian.graphene</groupId>
<artifactId>graphene-webdriver</artifactId>
<version>${version.org.jboss.arquillian.graphene}</version>
<type>pom</type>
<scope>test</scope>
</dependency>
<!-- To use WebDriver -->
<dependency>
<groupId>org.jboss.arquillian.extension</groupId>
<artifactId>arquillian-drone-webdriver-depchain</artifactId>
<version>${version.org.jboss.arquillian.drone}</version>
<type>pom</type>
<scope>test</scope>
</dependency>

Add the dependencies in dependencies.

<dependency>
<groupId>org.jboss.arquillian.graphene</groupId>
<artifactId>graphene-webdriver</artifactId>
<type>pom</type>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.jboss.shrinkwrap.resolver</groupId>
<artifactId>shrinkwrap-resolver-depchain</artifactId>
<scope>test</scope>
<type>pom</type>
</dependency>
<!-- https://mvnrepository.com/artifact/com.google.guava/guava -->
<dependency>
<groupId>com.google.guava</groupId>
<artifactId>guava</artifactId>
<version>28.2-jre</version>
<scope>test</scope>
</dependency>

Configure the Webdriver used to run the tests.

Create a property in pom.xml.

<!-- PhantomJS will be our default browser if no profile is specified-->
<browser>phantomjs</browser>

Set browser to use phantomjs by default.

In the src/test/resources/arqullian.xml file, add a qualifier webdriver to apply the settings of browser property.

<extension qualifier="webdriver">
<property name="browser">${browser}</property>
</extension>

Add some profiles to override the browser value to switch to other webdriver.

<profile>
<id>firefox</id>
<properties>
<browser>firefox</browser>
</properties>
</profile>
<profile>
<id>chrome</id>
<properties>
<browser>chrome</browser>
</properties>
</profile>
<profile>
<id>chromeheadless</id>
<properties>
<browser>chromeheadless</browser>
</properties>
</profile>

Create a test using Arquillian Drone.

@RunWith(Arquillian.class)
public class HomeScreenTest {
private static final Logger LOGGER = Logger.getLogger(HomeScreenTest.class.getName()); private static final String WEBAPP_SRC = "src/main/webapp"; @Deployment(testable = false)
public static WebArchive createDeployment() {
WebArchive war = ShrinkWrap.create(WebArchive.class)
.addPackage(Bootstrap.class.getPackage())
.addPackage(Task.class.getPackage())
.addPackage(FacesConfigurationBean.class.getPackage())
.addPackage(TaskHome.class.getPackage())
//Add JPA persistence configuration.
//WARN: In a war archive, persistence.xml should be put into /WEB-INF/classes/META-INF/, not /META-INF
.addAsResource("META-INF/persistence.xml", "META-INF/persistence.xml")
// Enable CDI
.addAsWebInfResource(EmptyAsset.INSTANCE, "beans.xml")
// add template resources.
.merge(ShrinkWrap.create(GenericArchive.class).as(ExplodedImporter.class)
.importDirectory(WEBAPP_SRC).as(GenericArchive.class),
"/", Filters.include(".*\\.(xhtml|css|xml)$")
);
LOGGER.log(Level.INFO, "deployment unit:{0}", war.toString(true));
return war;
}
@ArquillianResource
private URL deploymentUrl;
@Drone
private WebDriver browser;

@FindBy(id = "todotasks")
private WebElement todotasks;
@FindBy(id = "doingtasks")
private WebElement doingtasks;
@FindBy(id = "donetasks")
private WebElement donetasks;
@Test
public void testHomePage() {
final String url = deploymentUrl.toExternalForm();
LOGGER.log(Level.INFO, "deploymentUrl:{0}", url);
this.browser.get(url + "/tasks.xhtml");
assertTrue(todotasks.findElements(By.cssSelector("li.list-group-item")).size() == 2);
assertTrue(doingtasks.findElements(By.cssSelector("li.list-group-item")).isEmpty());
assertTrue(donetasks.findElements(By.cssSelector("li.list-group-item")).isEmpty());
}
}

In the above codes,

Extract the web elements into a class using the Page Object pattern.

@Location("tasks.xhtml")
public class HomePage {
@FindBy(id = "todotasks")
private WebElement todotasks;
@FindBy(id = "doingtasks")
private WebElement doingtasks;
@FindBy(id = "donetasks")
private WebElement donetasks;
public void assertTodoTasksSize(int size) {
assertTrue(todotasks.findElements(By.cssSelector("li.list-group-item")).size() == size);
}
public void assertDoingTasksSize(int size) {
assertTrue(doingtasks.findElements(By.cssSelector("li.list-group-item")).size() == size);
}
public void assertDoneTasksSize(int size) {
assertTrue(donetasks.findElements(By.cssSelector("li.list-group-item")).size() == size);
}

}

Create a test case for the home page.

@Test
public void testHomePageObject(@InitialPage HomePage home) {
home.assertTodoTasksSize(2);
}

In the test, you can inject the Page class by @Page, if the page class is annotated with @Location, it can be initialized by using a @InitialPage annotation..

In this sample, we just checked the task items count in the home pages.

For those new to Arquillian Drone and Arquillian Graphene2, please read the official step-by-step guide from JBoss Arquillian website.

Get the complete codes from my Github.

Written by

Self-employed technical consultant, solution architect and full-stack developer

Get the Medium app

A button that says 'Download on the App Store', and if clicked it will lead you to the iOS App store
A button that says 'Get it on, Google Play', and if clicked it will lead you to the Google Play store
